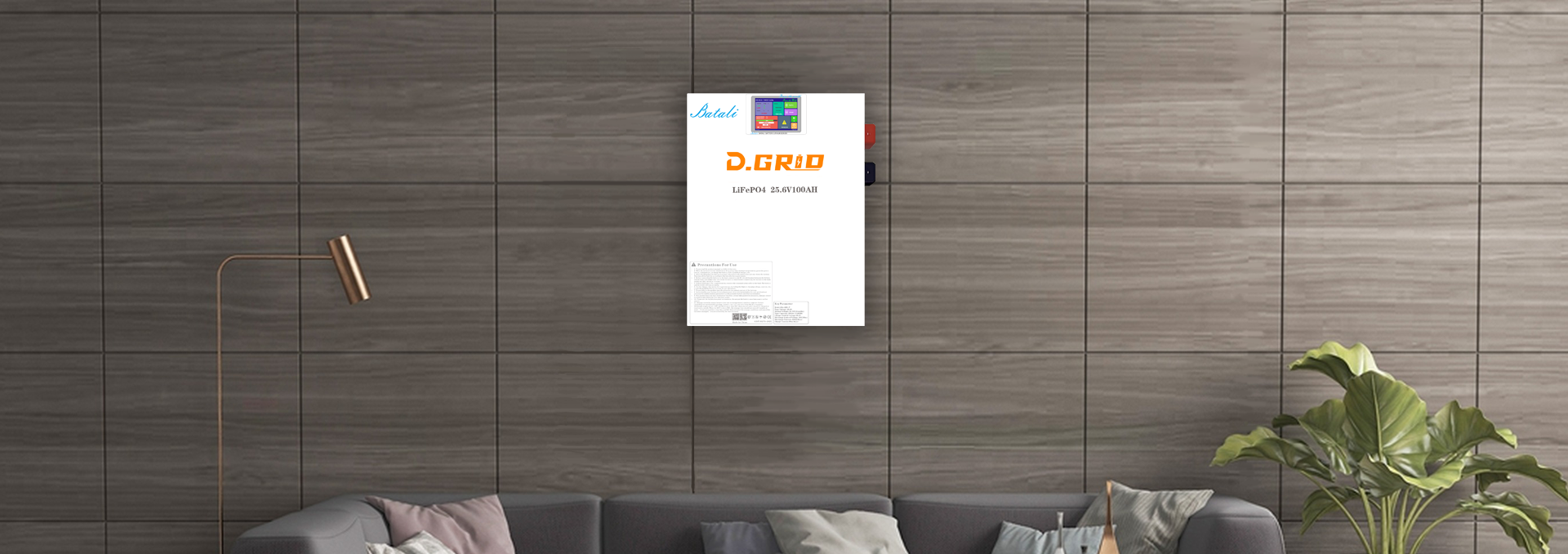

BA-22S-P 25.6V100AH 2.56KWh
Can support 17 pieces batteries in parallel
Adapted to over 90% of global inverter brands
Battery parameters
Cell pack basic parameter
Pack Nominal Voltage/V
25.6V
Max Charge Voltage/V
3.65V
Cell Nominal Capacity/Ah
100Ah
Battery Pack Energy/KWh
2.56KWh
Cell Max Discharge Rate/C
1C
Cell Max Charge Rate/C
0.5C
Cell In Series
8
Cell In Parallel
1
Battery Pack Method
Laser welding
DOD
80%
Cycle Life
7000 times
Warranty
5 years
Battery Parameter
LED Display
2.8 " Color Capacitive Touch Screen
BMS Type
Software RS485/CAN
USB (WIFI ONLY)
Optional WIFI module (Support OTA)
Operating Voltage Range/V
22V-29.2V
Charge Continuous Current/A
90A
Charge voltage(MAX)/V
29.2V
Discharge Continuous Current(MAX)/A
100A
Over Voltage/V
22V
Maximum Output Power/W
2.5 KW
Battery Size/MM
367mm*279mm*152mm
Net Weight/KG
22.6KG
Packaging Size/MM
440mm*334mm*197mm
Gross Weight/KG
24.1KG
Charge/Discharge Port
M8 Bolt
Temperature Protection
Discharging:-15-70℃；Charging:0-60℃
