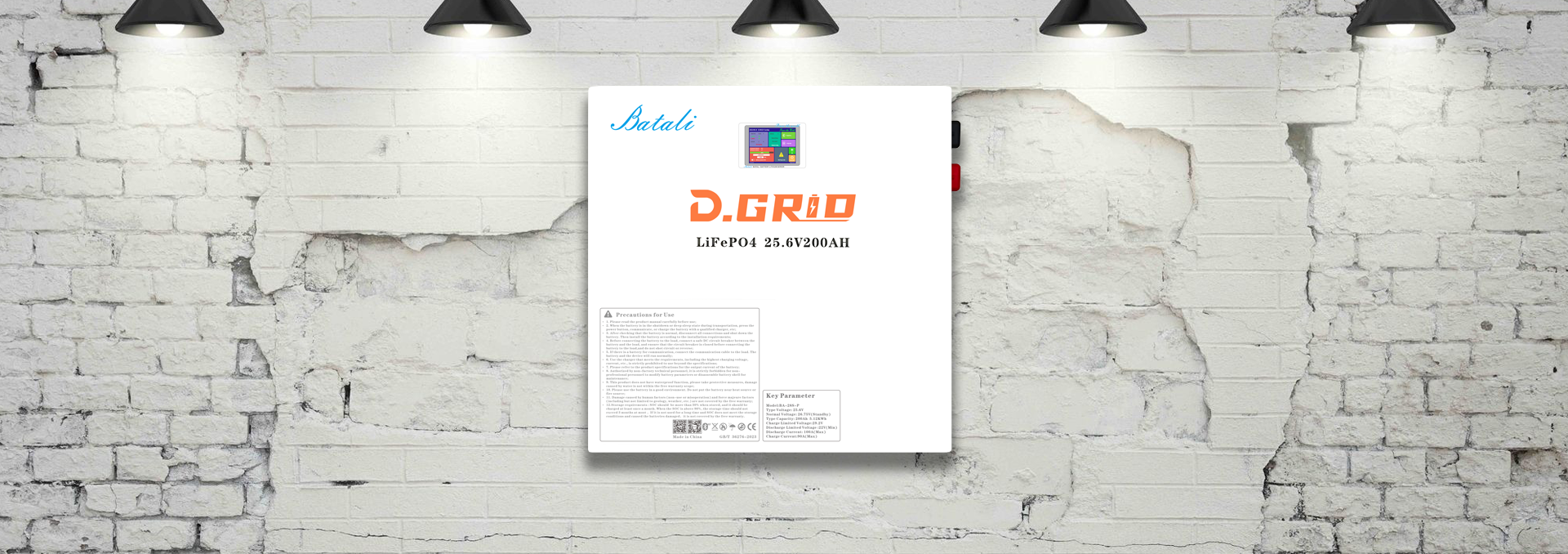

BA-28S-P  25.6V200AH   5.12KWh


Can support 17 pieces batteries in parallel

Adapted to over 90% of global inverter brands

Battery parameters

Cell pack basic parameter

Pack Nominal Voltage/V

25.6V

Max Charge Voltage/V

3.65V

Cell Nominal Capacity/Ah

200Ah

Battery Pack Energy/KWh

5.12KWh

Cell Max Discharge Rate/C

1C

Cell Max Charge Rate/C

0.5C

Cell In Series

16

Cell In Parallel

2

Battery Pack Method

Laser welding

DOD

80%

Cycle Life

7000 times

Warranty

5 years

Battery Parameter

LED Display

2.8 " Color Capacitive Touch Screen

BMS Type

Software RS485/CAN

USB (WIFI ONLY)

Optional WIFI module (Support OTA)

Operating Voltage Range/V

22V-29.2V

Charge Continuous Current/A

90A

Charge voltage(MAX)/V

29.2V

Discharge Continuous Current(MAX)/A

100A

Over Voltage/V

22V

Maximum Output Power/W

3 KW

Battery Size/MM

460mm*464mm*155mm

Net Weight/KG

42.4KG

Packaging Size/MM

535mm*515mm*200mm

Gross Weight/KG

47.8KG

Charge/Discharge Port

M8 Bolt

Temperature Protection

Discharging:-15-70℃；Charging:0-60℃
