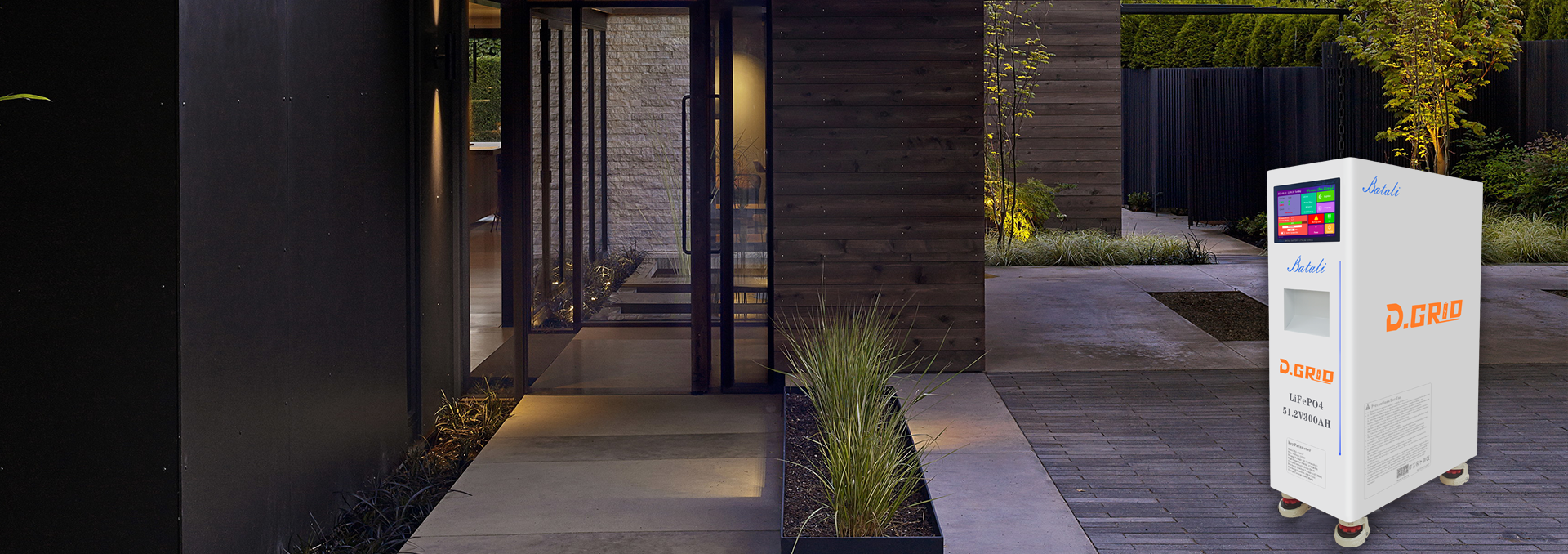

BA-39S-F  51.2V300AH  15.36KWh

Can support 17 pieces batteries in parallel

Adapted to over 90% of global inverter brands

Battery parameters

Cell pack basic parameter

Pack Nominal Voltage/V

51.2V

Max Charge Voltage/V

3.65V

Cell Nominal Capacity/Ah

300Ah

Battery Pack Energy/KWh

15.36KWh

Cell Max Discharge Rate/C

1C

Cell Max Charge Rate/C

0.5C

Cell In Series

16

Cell In Parallel

1

Battery Pack Method

Laser welding

DOD

80%

Cycle Life

7000 times

Warranty

7 years

Battery Parameter

LED Display

7 "Color Capacitive Touch Screen

BMS Type

Software RS485/CAN

USB (WIFI ONLY)

WlFl (Support OTA)

Operating Voltage Range/V

44V-58.4V

Charge Continuous Current/A

160A

Charge voltage(MAX)/V

58.4V

Discharge Continuous Current(MAX)/A

200A

Over Voltage/V

44V

Maximum Output Power/W

10 KW

Battery Size/MM

717mm*465mm*235mm

Net Weight/KG

110KG

Packaging Size/MM

750mm*540mm*305mm

Gross Weight/KG

120.8KG

Charge/Discharge Port

M8 Bolt

Temperature Protection

Discharging:-15-70℃；Charging:0-60℃
